集體包裝機&熱收縮隧道

CVC 1661 / CVC 1651

The CVC 1661/1651 Shrink Bundler & Heat Tunnel is a user friendly, compact machine designed to shrink bundle small and medium sized products. Machine options include multiple in-feed configurations and a single or double discharge depending upon rate requirements. The 1650/1651 is an ideal machine for the Nutraceutical, Pharmaceutical, Food and Beverage Markets.

  • Built to cGMP Standards
  • Painted Steel or Stainless Steel Construction
  • Economical Value
  • Quick & Easy Change Over

STANDARD FEATURES

  • Painted Steel or Stainless Steel onstruction
  • Single, indexing product loader and 2-Sided Sealer
  • Integrated Heat Shrink Tunnel
  • Quick product size changeover
  • Machine on casters for ease of movement
  • Light, compact design
  • Rate: Dependent upon bottle matrix

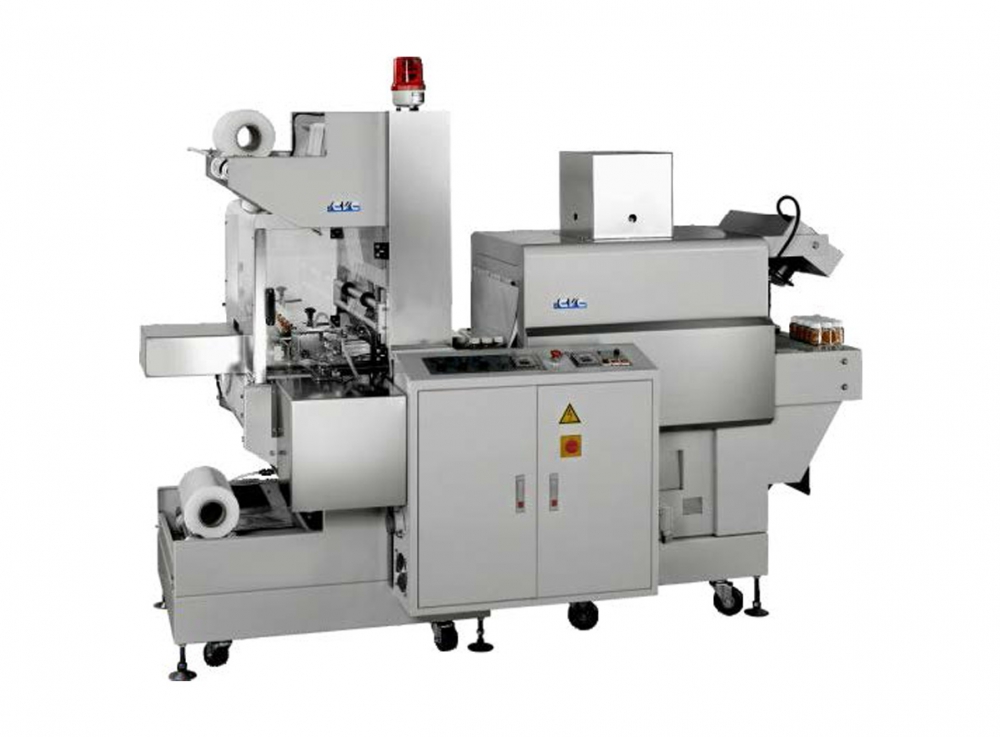

CVC 1661 / CVC 1651 Heat Shrink Tunnel (optional)
CVC 1661 / CVC 1651 Heat Shrink Tunnel (optional)
VARIOUS MACHINE CONFIGURATIONS ARE AVAILABLE FOR REQUIRED BUNDLE MATRIX
VARIOUS MACHINE CONFIGURATIONS ARE AVAILABLE FOR REQUIRED BUNDLE MATRIX

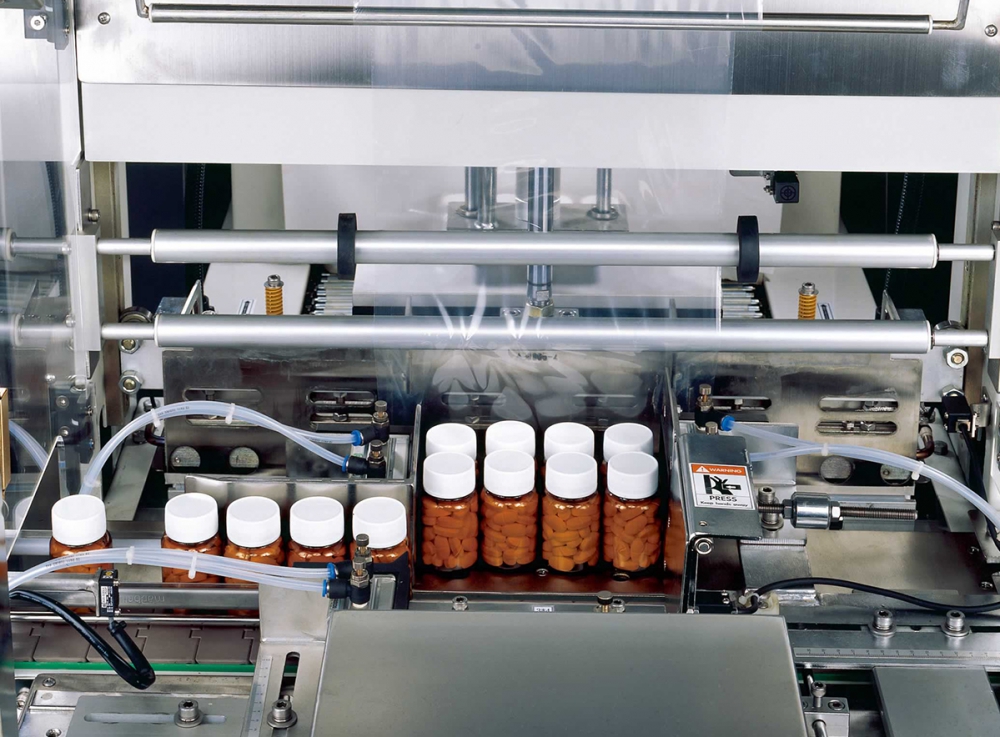

btl arranger
btl arranger

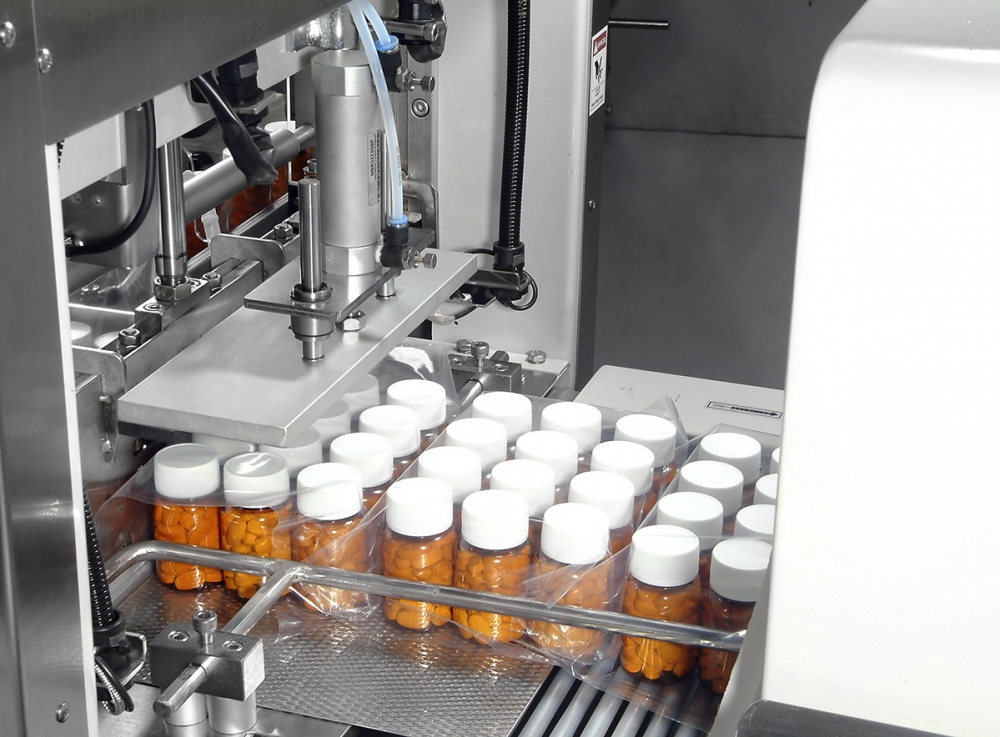

film wrapping
film wrapping

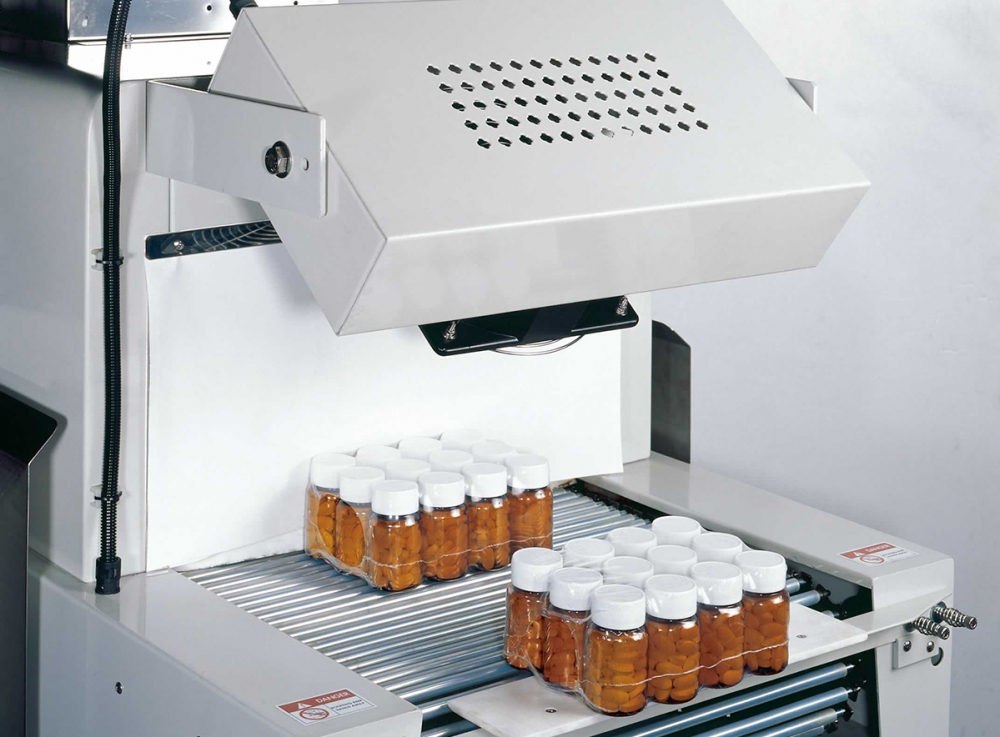

outfeed
outfeed
Previous Next Play Pause

TECHNICAL SPECIFICATIONS

AVAILABLE OPTIONS:

  • Product Change Part
  • Variable Speed Drive for In-feed conveyor
  • 1.0M Outlet Gravity Roller Conveyor, SUS 304 Stainless



MACHINE LAYOUTS:


The dimensions shown are for standard machine. The conveyor can be extended: the length may vary based on selected options. This machine can run independently or be integrated into an automated packaging line. All CVC equipment is covered by a one-year parts warranty. Full Warranty details are included in our equipment proposals or can be found on our website.


Technical Specifications CVC 1661 Technical Specifications
Power source 220V, 50/60 Hz, 3 Phase
Power consumption 50-75 AMP
Air Volume 280L (Plant air must be dry and clean)
Air Pressure Minimum 87 psi (ISO 8573-1)
Speed Up to 100 Bottles per Minute(BPM)
Single-Bundle Loader Max width: 16” (410mm)
Max length: 14” (355mm)
Max height: 8 ¾" (222mm)
Two-Bundle Loader Max width: 11 ½” (292mm)
Max length: 9 ¾" (247mm)
Max height: 8 ¾" (222mm)
Film Roll Specs

Single-Bundle Loader
Max roll width: 20 ½” (520mm)

Two-Bundle Loader
Max roll width: 11” (279mm)
Max roll outer diameter: 11 ½” (292mm)
